Jbocnt Group Aviation Connectors Cable Mount Solder Panel Mount Socket PCB Male Female Connectors
Product advantages
| ☑ Compact structure, high space utilization |
| ☑ Adopt optimized structure, enhance heat dissipation |
| ☑ Easy to install and disassemble |
| ☑ Low resistance, high conductivity, reduce energy loss |
| ☑ Insert a variety of auditory and visual feedback |
| ☑ Adapt to vibration, temperature changes and humid environments |
All specifications for all aviation connectors
OUR CUSTOMERS
Core features of metal aviation connectors
Military-grade structural design
The shell is made of high-strength aluminum alloy (hard-oxidized surface), with vibration resistance of 10-2000Hz/15G, in line with MIL-DTL-38999 standard
Triple locking mechanism: thread + bayonet + self-locking ring to ensure zero fall-off under extreme working conditions
Adaptability to extreme environments
Working temperature: -55°C to +175°C (instantaneous temperature resistance 200°C)
Protection level: IP68 (3 meters underwater/72 hours) and salt spray corrosion resistance (96 hours test)
Electrical performance parameters
Rated current: 30A (40A peak)
Contact resistance: ≤2mΩ (gold-plated contacts, plug-in life 5000 times)
Insulation withstand voltage: 1500V AC/min
Application scenarios
Airborne equipment power supply/signal transmission (avionics system, flight control module)
Ground support equipment interface (detector, charging pile)
UAV high-voltage power link
High-protection industrial equipment
Certification system
Complies with AS/EN9100 aviation quality management system
Obtained DO-160G airborne equipment environmental test certification
Product Tags:
|
|

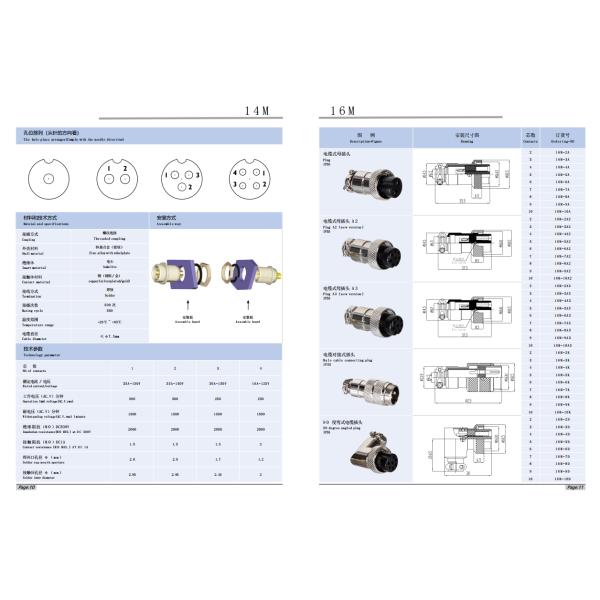

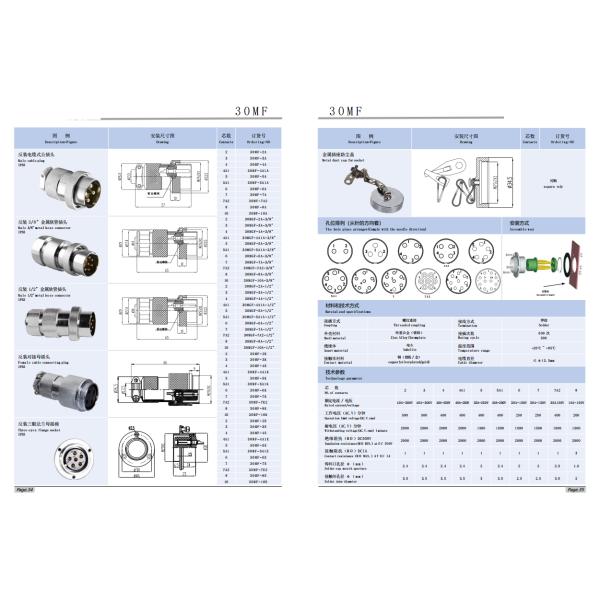

Circular Aviation Connectors Solder Panel Mount Socket PCB Male Female Connectors Images
|
